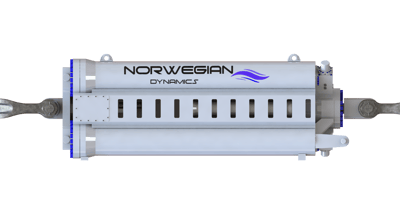

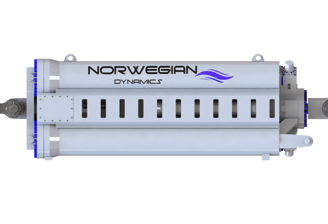

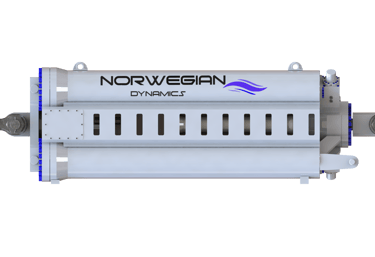

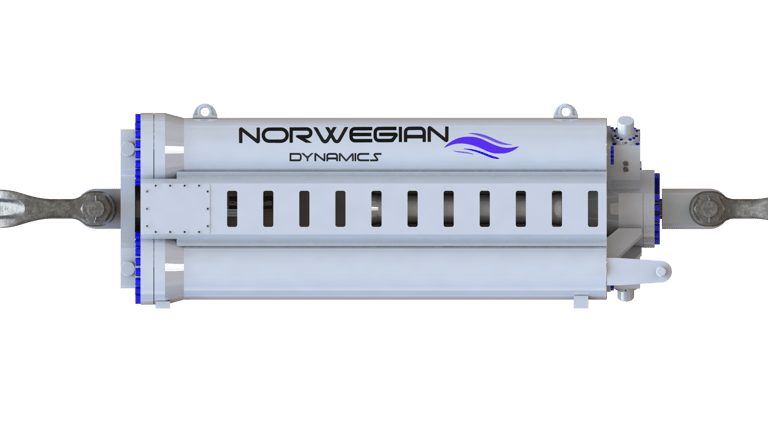

Antares Adaptive PHC

What applications can Antares Adaptive PHC be used for?

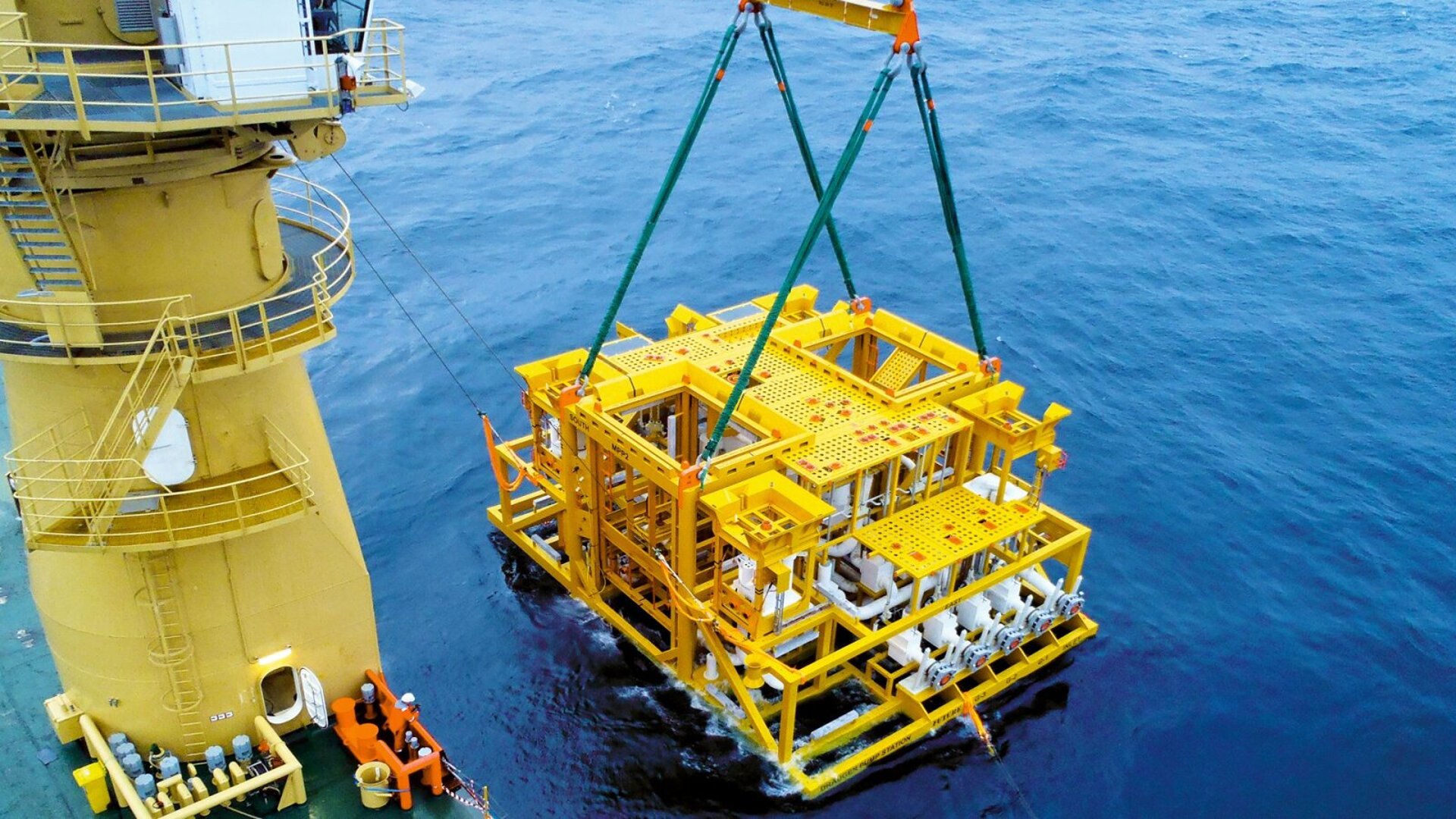

The Antares Adaptive PHC is very well suited for lifting through the splash zone, resonance avoidance, subsea landings and subsea retrievals. It can also be used for shock absorption and quick lifting.

How does Antares Adaptive PHC work?

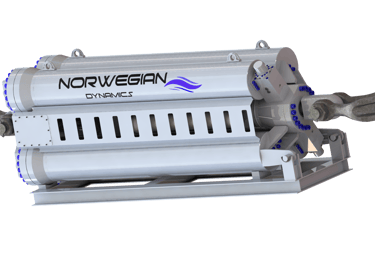

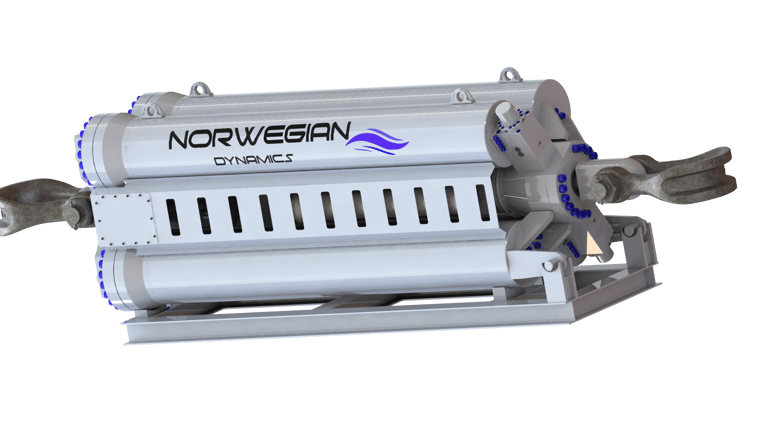

Antares Adaptive PHC combines a hydraulic cylinder with a set of gas accumulators. The gas accumulators provides the spring effect while the oil flow is precisely controlled between the cylinder and accumulators to provide damping.

The Antares has the following operational modes:

• Locked, reduces required lifting height during lift off from vessel deck.

• Splash zone, optimal stiffness and damping settings for splash zone crossings.

• Subsea, reduced stiffness and damping for high performance subsea.

How much does it cost?

Please contact us for a quote. We have the lowest prices and the best terms of any PHC supplier.

What range do you offer?

Antares Adaptive PHC has standard SWL designs of 10t to 1000t. The standard stroke length is 2.5m to 6m.

Where can I get more information?

You can reach us by calling +47 9664 7886 or by contacting us at post@nodynamics.com.

What are the technical benefits of Antares Adaptive PHC versus other similar PHC units?

Increased reliability, easier filling of gas, easier filling of oil, easier air bleeding, increased gas volume, lower weight, infinitely adjustable extension damping, infinitely adjustable return damping, lifting points, support feet, better filling kits, better calculation sheets.

Designed and approved according to DNV ST-0378 and DNV RP-N202.
